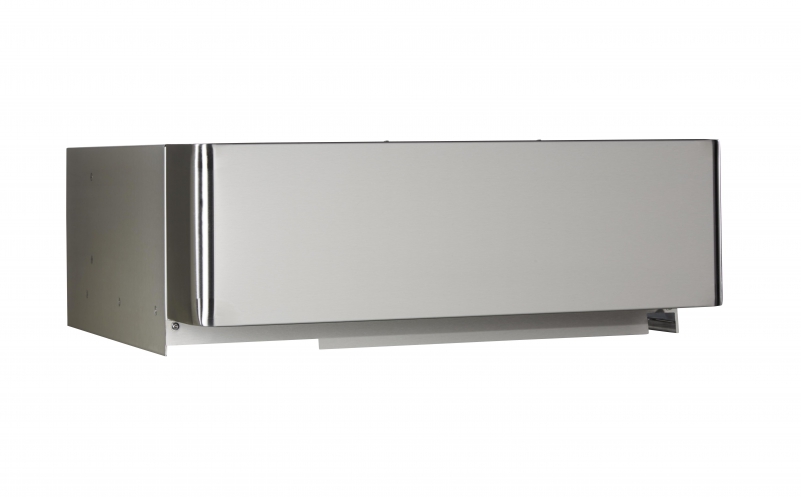

Vision Vent condensation hood RPH623 for Vision 623 combi ovens

Vision Vent condensation hood RPH623 for Vision 623 combi ovens

The RETIGO Vision Vent condensation hood RPH623 is designed for RETIGO Vision 623 combi ovens. Vision Vent hood is very easy to assambly. Consumption of electricity is very low (conection directly to the 230V socket or via unit) and operation of hood is fully automatic.

Request

TODO /3d/nejaky_soubor_b-623.html

Basic characteristics

  • Compatible with RETIGO Vision 623 combi ovens (both Blue and Orange)
  • Compatible with DeliMaster DM623
  • Easy assembly and disassembly
  • Simple to operate – the exhaust fan will switch on automatically after the combi oven door is opened
  • Easy maintenance
  • No extra water consumption thanks to the air condensation unit
  • Strong performance eliminates unpleasant kitchen odor
  • 220 V voltage – very low use of electric energy

Technical data

ModelRPH0623
Dimensions (w x h x d)  688 x 251 x 633 mm
Weight 40 kg
Total power 0,165 kW
Voltage* 1N~/230V/50-60Hz
Noise level (min./max.) 46 dB/ 50 dB
Max. air flow 760 m3/hr.

 * The hood is connected to the power supply separately. The power connection via the combi oven is a possible additional option (see optional accessories for the relevant products).

Drawings

RPH623

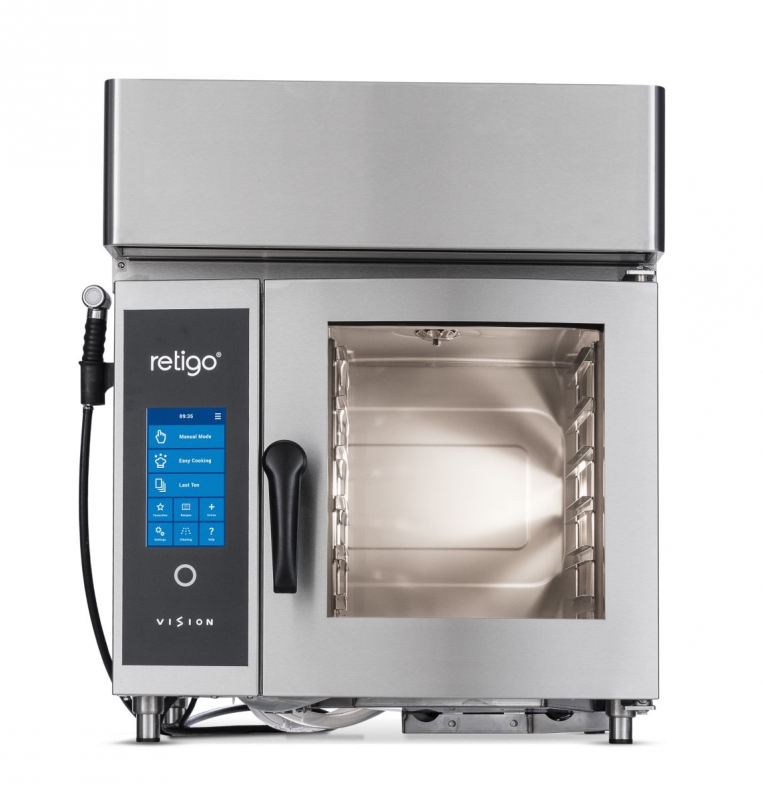

Set 623/RPH623

A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water

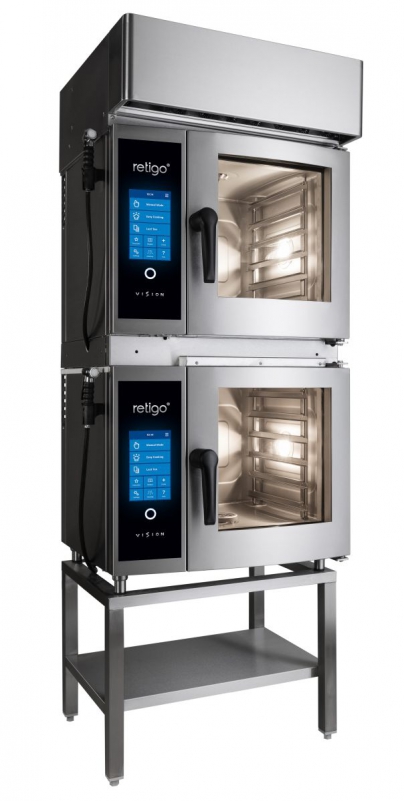

Set 623/623/RPH623

A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
