Vision Vent condensation hood RPH0610 for Vision 611 or 1011 combi oves

Vision Vent condensation hood RPH0610 for Vision 611 or 1011 combi oves

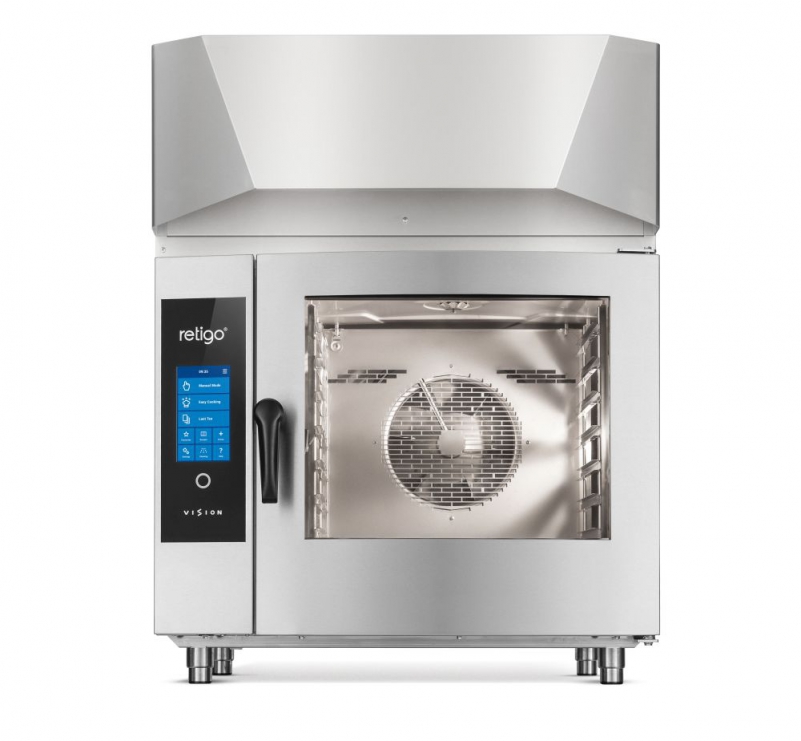

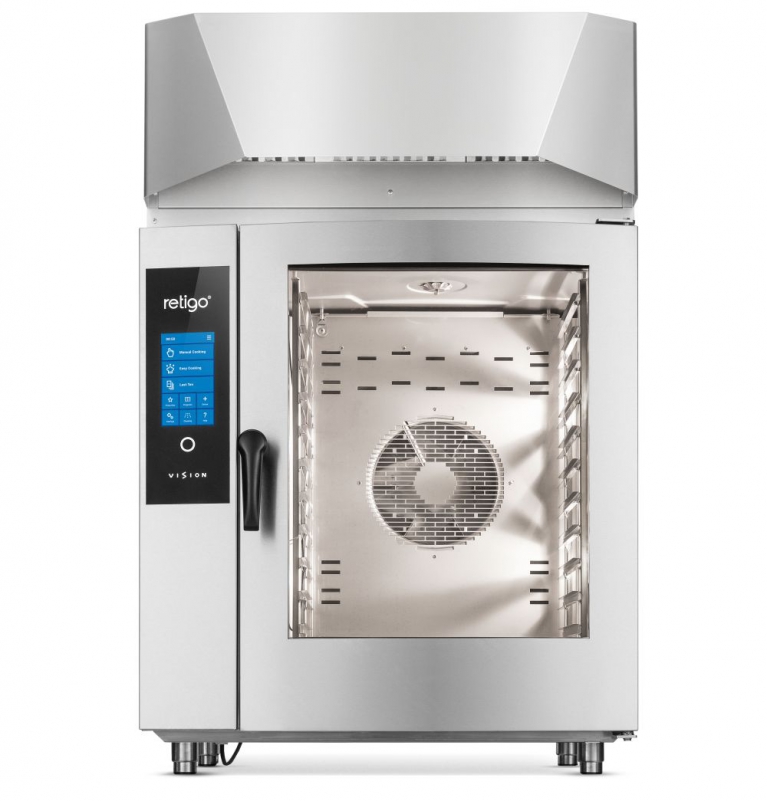

The RETIGO Vision Vent condensation hood RPH0610 is designed for RETIGO Vision 611, 1011 electric combi ovens and DeliMaster DM5, DM8 confectionary ovens. Vision Vent hood is very easy to assambly. Consumption of electricity is very low (conection directly to the 230V socket or via unit) and operation of hood is fully automatic. Vision Vent hood is not compatible with gas combi ovens.

Request

TODO /3d/nejaky_soubor_b-623.html

Basic characteristics

  • Compatible with RETIGO Vision 611, 1011 combi ovens (both Blue and Orange)
  • Compatible with DeliMaster DM5, DM8.
  • Not compatible with gas units.
  • Easy assembly and disassembly
  • Simple to operate – the exhaust fan will switch on automatically after the combi oven door is opened
  • Easy maintenance
  • No extra water consumption thanks to the air condensation unit
  • Strong performance eliminates unpleasant kitchen odor
  • 220 V voltage – very low use of electric energy

Technical data

ModelRPH0610
Dimensions (w x h x d)  938 x 409 x 912 mm
Weight 60 kg
Total power 0,4 kW
Voltage* 1N~/230V/50-60Hz
Noise level (min./max.) 63 dB/ 68 dB
Max. air flow 1000 m3/hr.

 * The hood is connected to the power supply separately. The power connection via the combi oven is a possible additional option (see optional accessories for the relevant products).

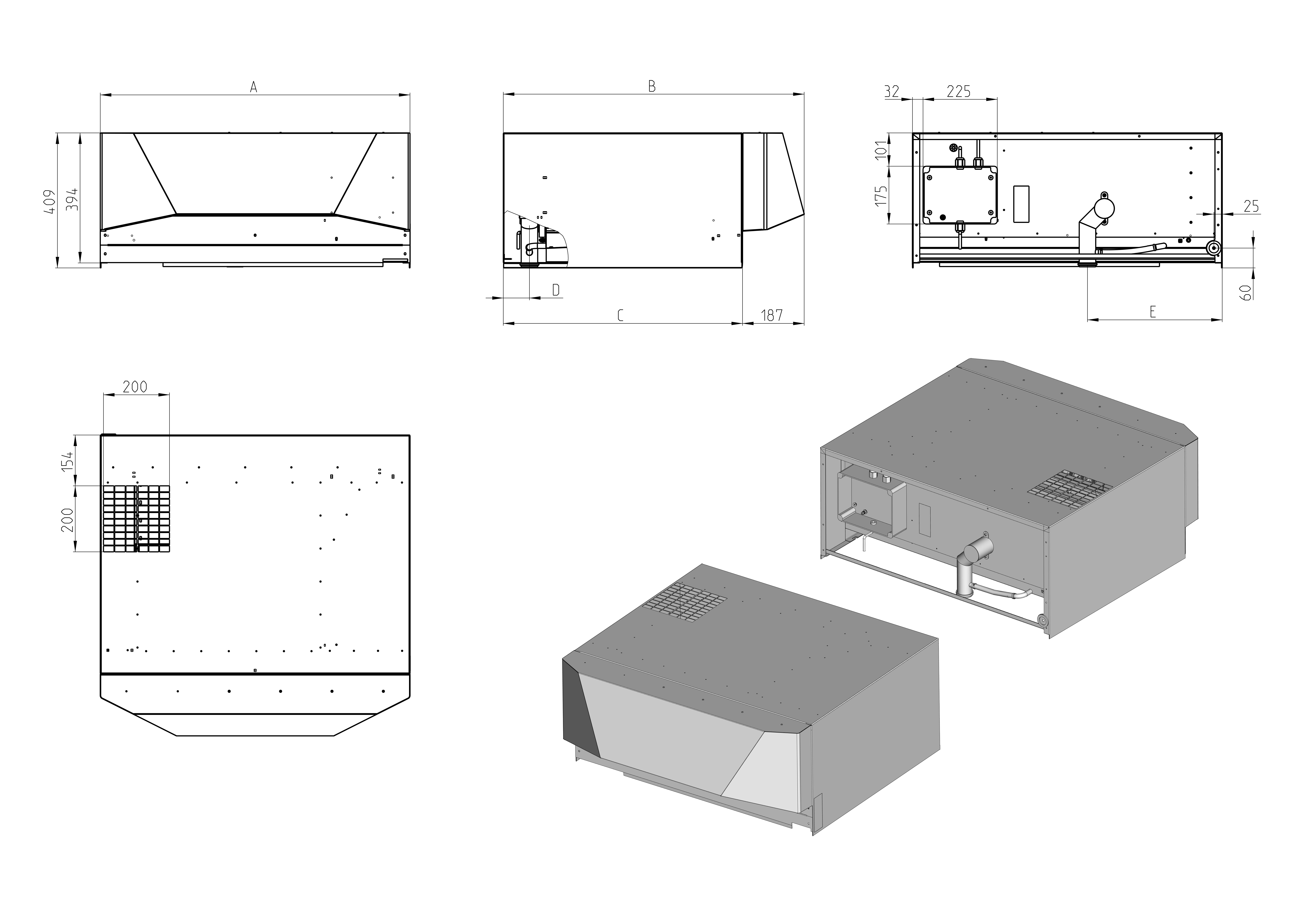

Drawings

RPH0610

ModelRPH0610
A 938 mm
B 912 mm
C 725 mm
D 79 mm
E 408 mm
