Banquet system for Vision 1011 combi ovens

Banquet system for Vision 1011 combi ovens

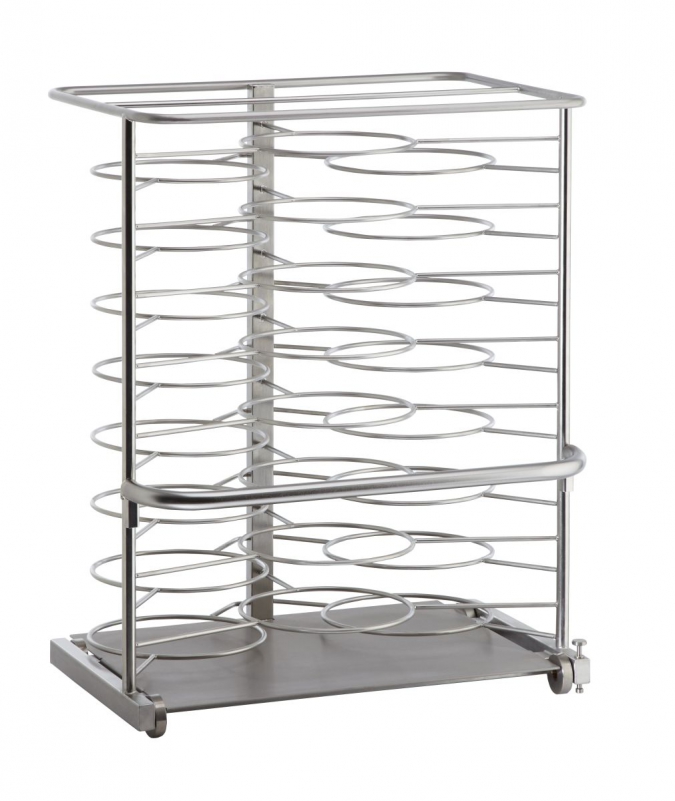

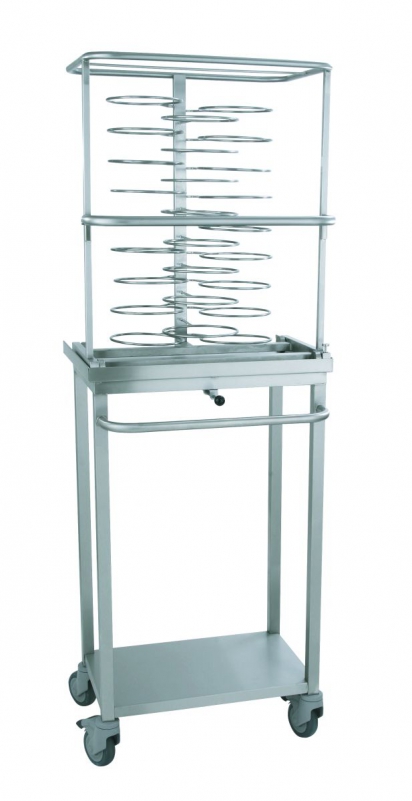

The banquet system for Vision 1011 combi steamers consists of a banquet basket KO1011, a filling trolley VO1011, and a thermal cover TO1011. The banquet basket KO1011 is available in two capacities — for 29 plates (65 mm of space between circles) or 24 plates (80 mm of space between circles). The trolley is designed for plates 280 mm in diameter. An indispensable part of the system for Vision 1011 combi steamers is a basket guide, which is different for electric and gas combi steamers. All of these components for the 1011 banquet system must be ordered separately.

Request

TODO /3d/nejaky_soubor_b-623.html

Banquet system and thermocover

Banquet system 1011

NameTypeCircle spacing (mm)Diameter of plates (mm)
Banquet basket 1011 - 29 plates  KO 1011B-29  65 280
Banquet basket 1011 - 24 plates  KO 1011B-24 80 280
Loading trolley for KO 1011 VO 1011 - -

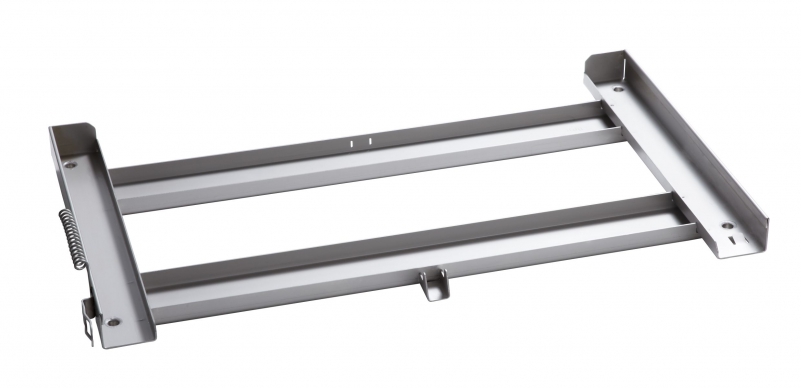

Guide rack* for KO 1011 - - -
Guide rack* for KO 1011 - gas - - -

 * It is essential part of the loading rack Ko 1011 but if you already own one guide rack it is not neccessary to order another one.

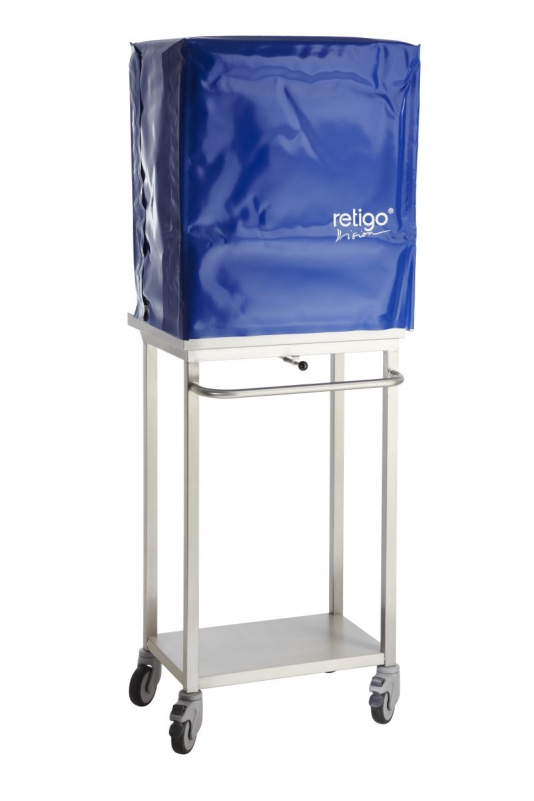

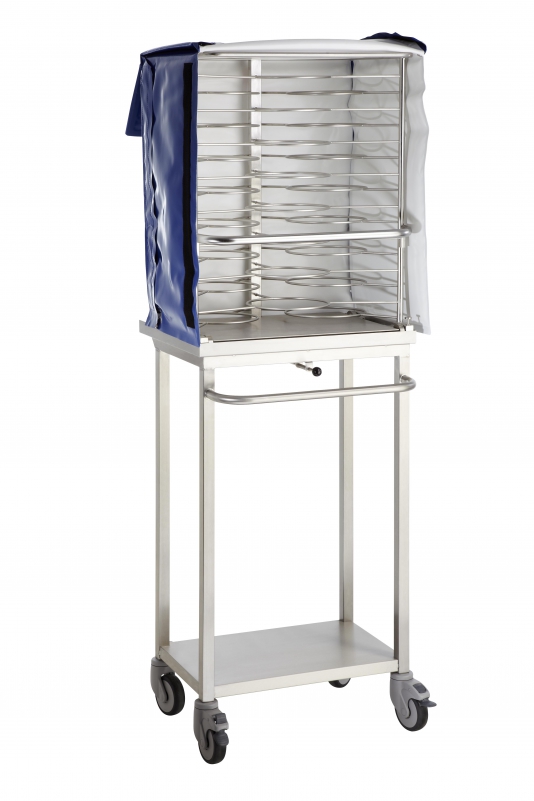

 Thermo cover 1011

NameType
Thermo cover for KO 1011B  TO 1011B



Drawings

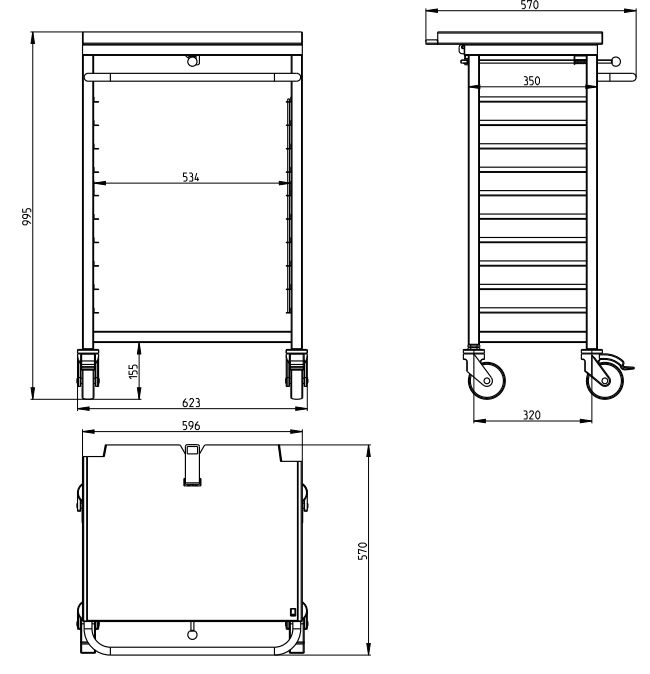

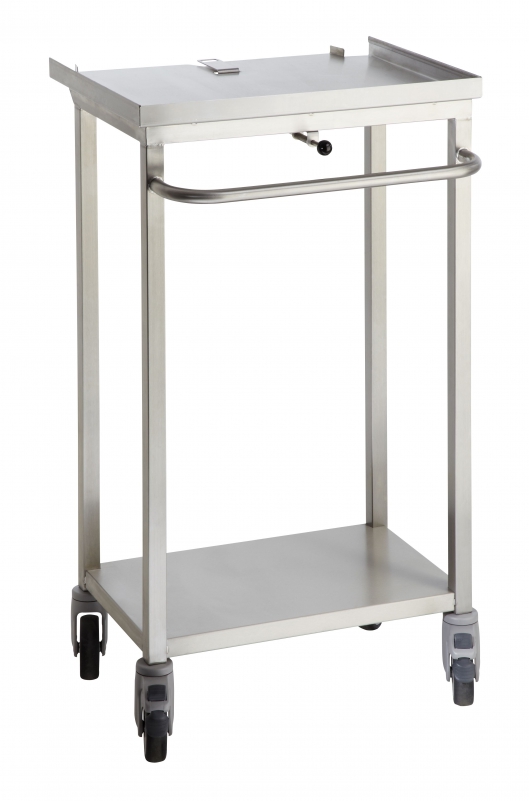

Loading trolley VO1011

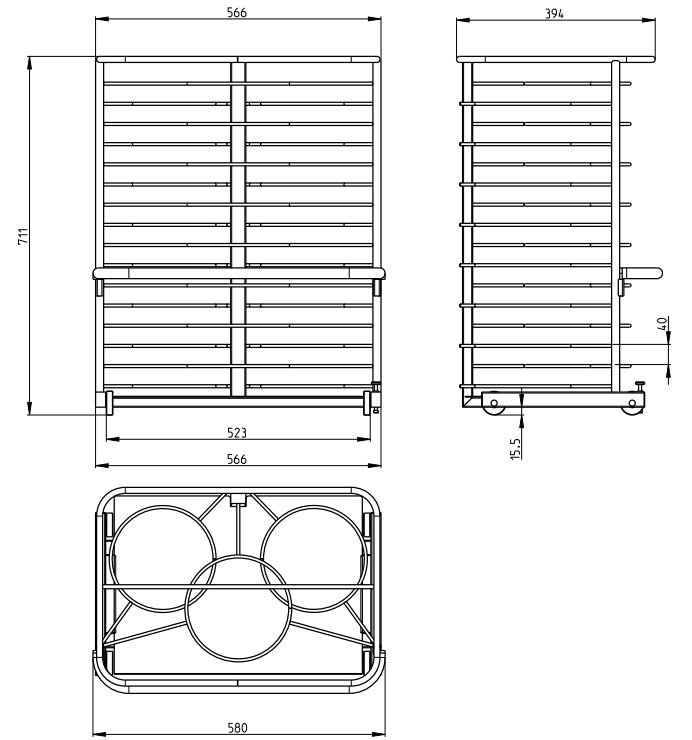

Banquet basket KO1011B - 24 plates

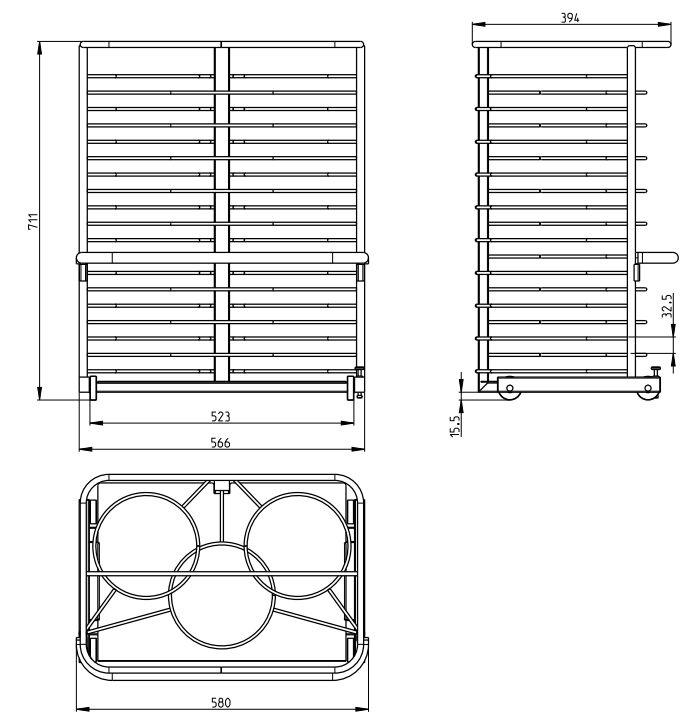

Banquet basket KO1011B - 29 plates
